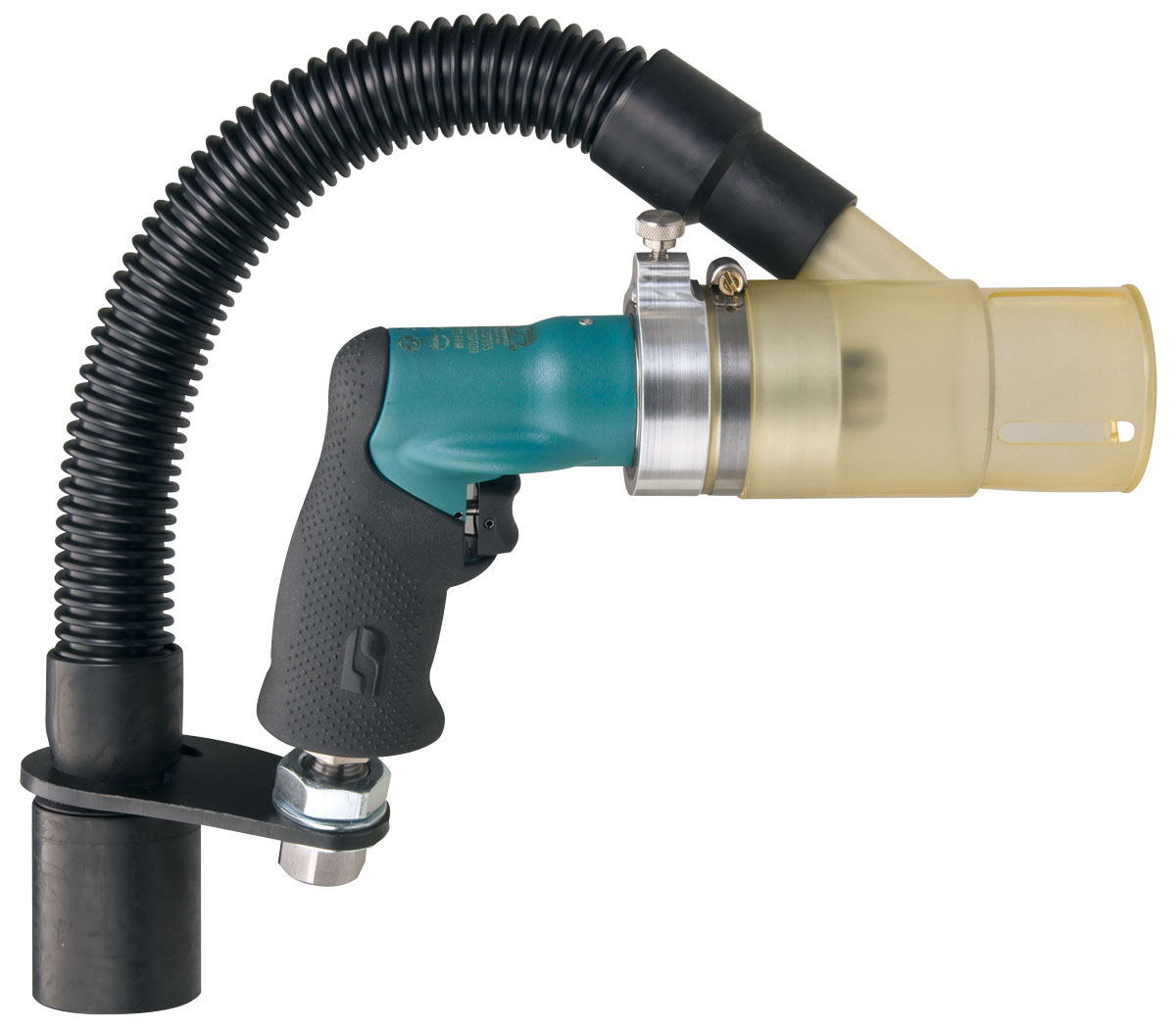

.4 hp Pistol Grip Central Vacuum Drills Dynabrade 52903 – 52905

.4 hp Pistol Grip Central Vacuum Drills Dynabrade 52903 – 52905

  • Offered in 5 speeds
  • Includes collapsible urethane shroud which compresses around drill bit to effectively capture chips and debris
  • Includes conductive hoses and cuffs that route electrostatic discharge (ESD) away from the operator
  • Copper wire connects tool to conductive cuff to begin a path for ESD
  • High torque air motor
  • Comfortable textured tactile grip
  • Tool design includes finger platforms on each side of the tool for operator comfort and control
  • Includes 6 mm (1/4″) Dynachuck
  • Models 52903 and 52904 include 13141 Handle Assembly
  • Technical specifications
  • Data sheets and spare parts
Model number529035290452905
Chuck Size Inch (mm)1/4″ (6)1/4″ (6)1/4″ (6)
Spindle thread size3/8″-24 Male3/8″-24 Male3/8″-24 Male
Motor hp (W).4 (298).4 (298).4 (298)
Motor Free Speed (RPM)5001.0002.400
Exhaust TypeRearRearRear
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)23 (651)25 (708)22 (623)
Air Inlet Thread1/4″ NPT1/4″ NPT1/4″ NPT
Hose I.D. Size Inches (mm)1/4″ (6)1/4″ (6)1/4″ (6)
Length Inches (mm)10-1/2″ (268)10-1/2″ (268)10-1/2″ (268)
Height Inches (mm)11-3/4″ (300)11-3/4″ (300)11-3/4″ (300)
Sound Level dB(A)768077
Vibration Tool Peak Axis ISO8662 (m/sec²)1.12.92.9
Item Weight1.68 kg1.68 kg1.68 kg
Instruction Manual and Parts List Dynabrade 0.4 HP Suction Drill 52903, 52904, 52905 (PDF)
